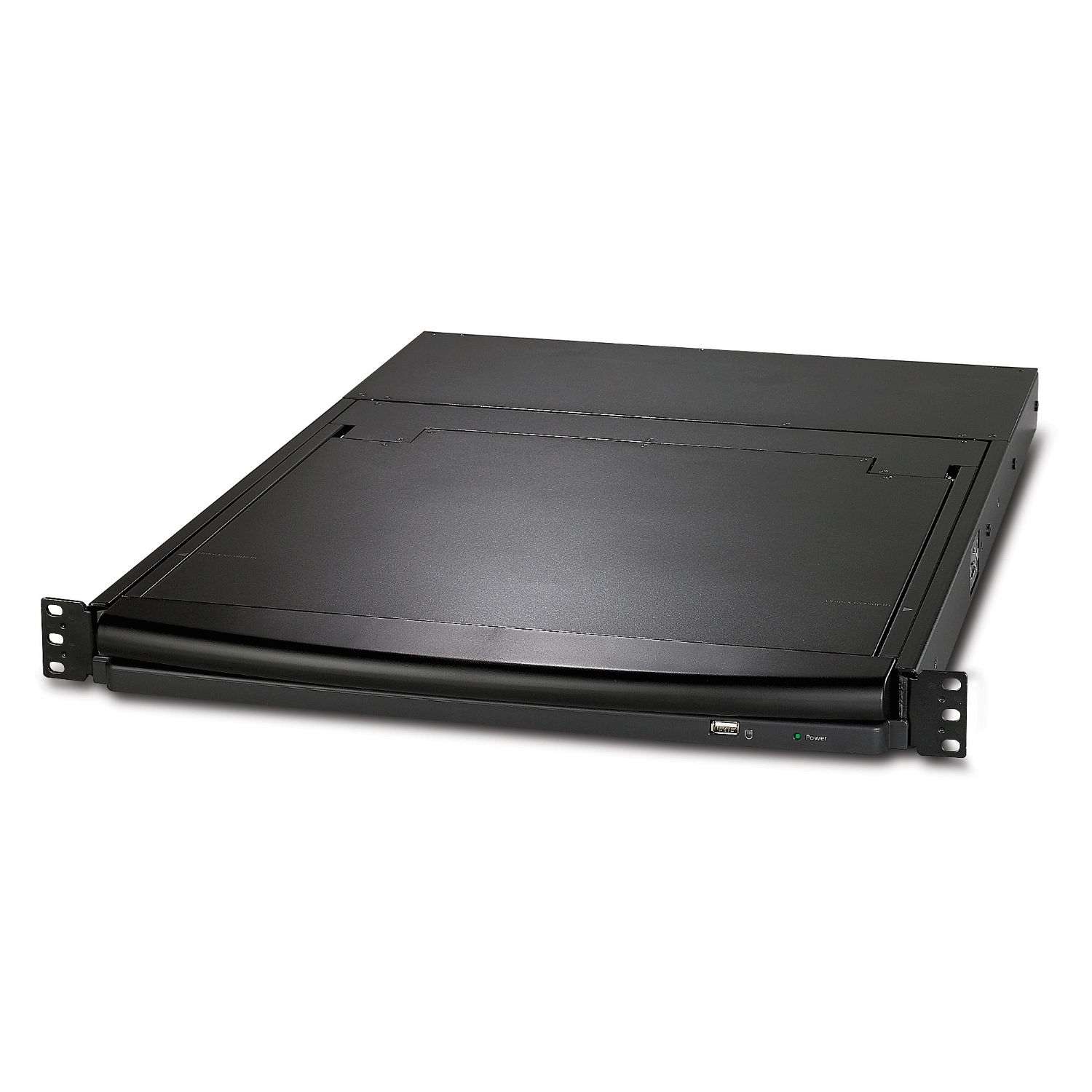

17" Rack LCD Console with Integrated 16 Port Analog KVM Switch

Presentation

The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package. Keyboard is a US English keyboard layout.

Lead time

Usually in Stock

Main Input Voltage

120 V
240 V

Input Connection Type

IEC 60320 C14

Number of rack unit

1U

Cable length

6 ft (1.8 m)

Number of cables

1

Provided equipment

USB KVM cable
Single user rack mount kit
PS2 KVM cable
NEMA 5-15 power cord
Installation guide
Firmware upgrade cable
Documentation CD
C13-C14 power cord

Color

Black

Height

1.7 in (4.3 cm)

Width

19.02 in (48.3 cm)

Depth

28.0 in (71.1 cm)

Net Weight

30.9 lb(US) (14 kg)

mounting location

Front

Mounting preference

No preference

Mounting Mode

Rack-mounted

Maximum Mounting Depth

41.33 in (104.98 cm)

minimum mounting depth

26.8 in (68 cm)

Input Frequency

50/60 Hz

Product Certifications

cUL Listed
C-tick
CE
Industry Canada
KCC
UL Listed
VDE
TAA compliance

Standards

EN 60950
FCC Part 15 class A
IEC 60950

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Display colour

16 colours

Display size

337.9 (H) x 270.3 (V)
17 inch

Trackball Type

PS/2 Touchpad
USB mouse

Display Type

LCD display

GTIN

731304278818

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.1 in (13 cm)

Package 1 Width

32.7 in (83 cm)

Package 1 Length

26.2 in (66.5 cm)

Package 1 Weight

44.40 lb(US) (20.14 kg)

Warranty

2 years repair or replace
